 4 mono loops and 2 stereo loops, plus 1 volume loop
Changeable loop order per each preset
2 Buffers, Input and Movable buffers
2 internal unity mixers/volume-controllers
(Parallel, Carry Over routings or Volume Conrol)
641 preset memory locations
160 banks of 4 presets, plus a Global Preset
2 function control switches
(Latched / Reverse Latched / Momentary / Tempo Sync)
Mute and Click-Less functions
Song and Set mode
Create up to 480 songs
Organized the 480 songs in to 60 sets of 48 songs
12 MIDI messages (PC, CC and Note) each preset
4 MIDI messages (PC, CC and Note) each switch
4 Audio actions each IA switch
MIDI Time Clock or Analog Tempo out for TAP-TEMPO
One expression pedal port (global / per preset)
2 lines x 16 characters LCD display with blue backlight
Easily copy presets, banks, songs and sets
Easily name presets and songs
Heavy-duty footswitches
Powered by 9VDC(center negative) 200mA
Dimensions : 320(W) x 96(D) x 68(H) mm
12.6(W) x 3.8(D) x 2.7(H) inches
Weight : 1,130g / 2.5lbs
|
Hi-Res Pictures
Picture1 Picture2 Picture3 Picture4
Manual
EFX-LEII Manual (English, version 2.3x)
EFX-LEII Manual (Korean, version 2.3x)
Latest Firmware
EFX-LEII Firmware v2.30 (06-NOV-2023)
Read this document thoroughly before updating to the firmware
EFX-LEII Editor
EFX-LEII Editor v1.30 (Windows, 06-NOV-2023)
EFX-LEII Editor v1.30 (macOS, 06-NOV-2023)
|
|

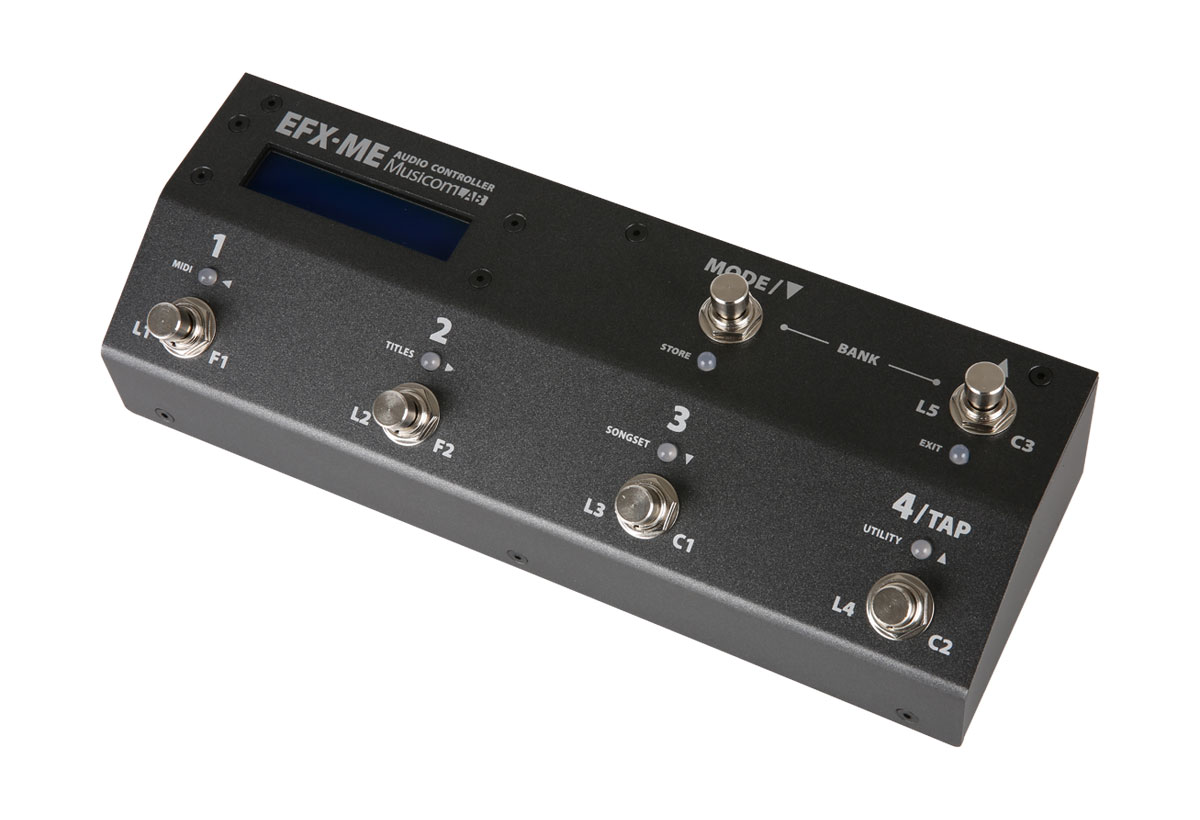

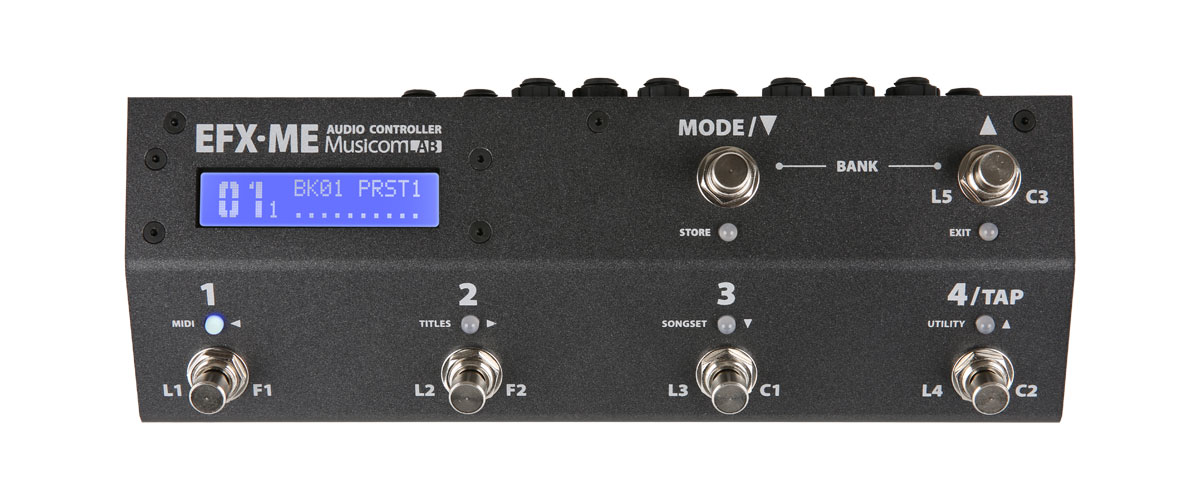

5 mono loops
One loop Can be assigned with a Spillover between presets
2 function control switches (Latched / Momentary)
2 Buffers, Input and Output buffers
Mute and Click-Less functions
361 preset memory locations
90 banks of 4 presets, plus a Global Preset
Song and Set mode
Create up to 99 songs
Organized the 99 songs in to 40 sets of 40 songs
4 MIDI Program and 4 MIDI Control Change messages
Each MIDI message can be stored in each preset
10 MIDI Control Change messages by assigned IA switches
MIDI Time Clock or Analog Tempo out for TAP-TEMPO
2 lines x 16 characters LCD display with blue backlight
Easily name presets, songs and sets
Heavy-duty footswitches
Powered by 9VDC(center negative) 200mA
Dimensions : 256(W) x 96(D) x 68(H) mm
10.1(W) x 3.8(D) x 2.7(H) inches
Weight : 820 g / 1.8 lb
|
Hi-Res Pictures
Picture1 Picture2 Picture3 Picture4 Picture5
Manual
EFX-ME Manual (English, version 1.0x)
Latest Firmware
EFX-ME Firmware Version 1.04 (03-15-2020)
You can update new firmware using the EFX-ME editor.
EFX-ME Editor
EFX-ME EDITOR V1.00 (for Windows, 03-27-2019)
EFX-ME EDITOR V1.10 (for MacOS, 10-18-2019)
Make sure to update the latest firmware(V1.00 or higher) for your
EFX-ME before attempting to use the Editor software.
|
|

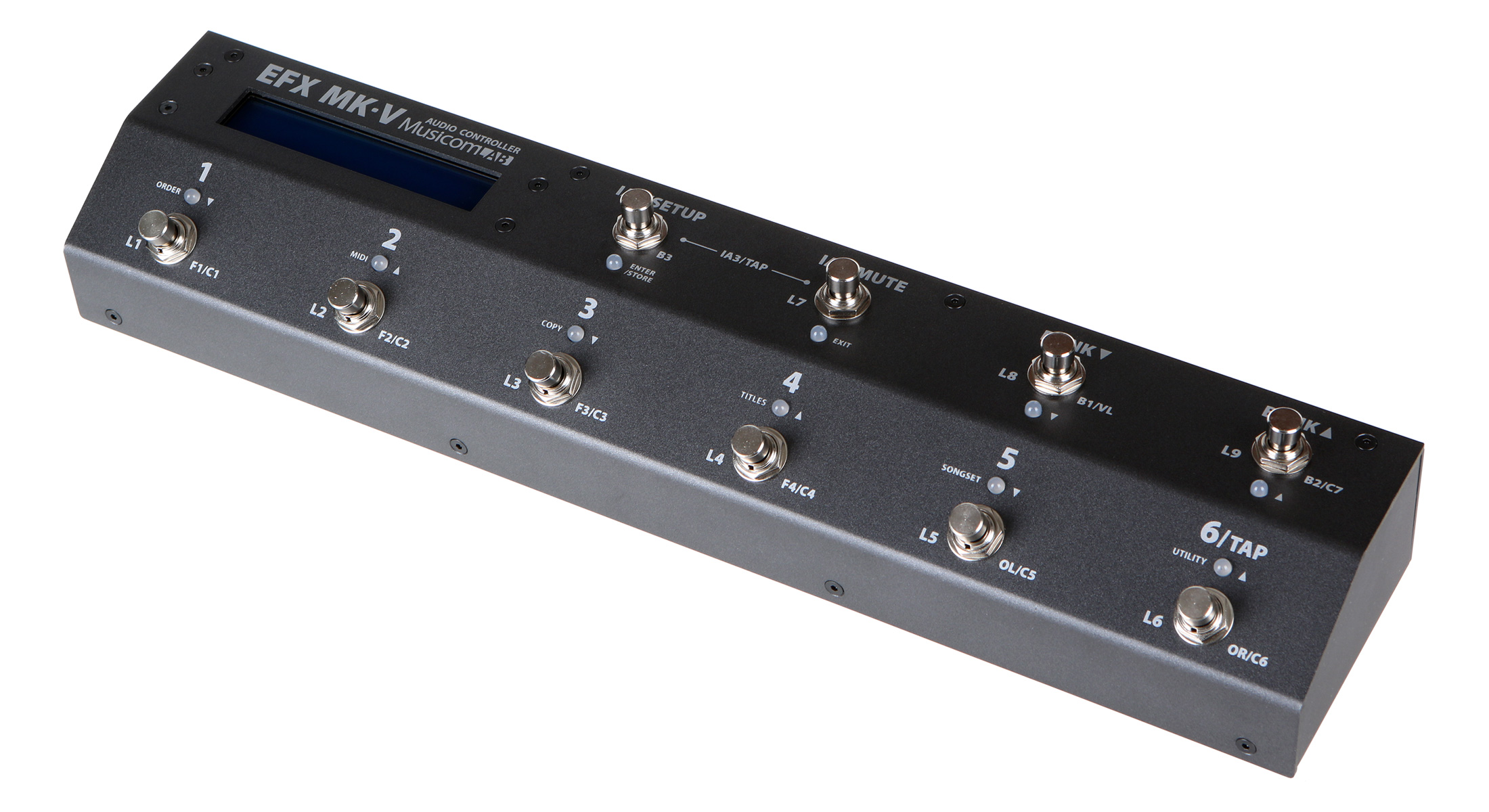

7 mono loops and 2 stereo loops, plus 1 volume loop
Changeable loop order per each preset
3 Buffers, Input, Output and Movable buffers
2 internal unity mixers (Mixer or Spill Over)
361 preset memory locations
60 banks of 6 presets, plus a Global Preset
4 function control switches (Latched / Momentary)
Mute and Click-Less functions
Song and Set mode
Create up to 99 songs
Organized the 99 songs in to 40 sets of 40 songs
8 MIDI Program and 8 MIDI Control Change messages
Each MIDI message can be stored in each preset
25 MIDI Control Change messages by assigned IA switches
MIDI Time Clock or Analog Tempo out for TAP-TEMPO
One expression pedal port (global / per preset)
2 lines x 24 characters LCD display with blue backlight
Easily copy presets, banks, songs and sets
Easily name presets and songs
Heavy-duty footswitches and gold-plated relays
Powered by 12VDC(center negative) 300mA
Dimensions : 420(W) x 96(D) x 68(H) mm
16.5(W) x 3.8(D) x 2.7(H) inches
Weight : 1,450g / 3.2lbs
|
Hi-Res Pictures
Picture1 Picture2 Picture3 Picture4 Picture5 Picture6
Manual
EFX MK-V Manual (English, version 2.0x)
Latest Firmware
EFX MK-V Firmware Version 2.01 (10-17-2019)
You can update new firmware using the EFX MK-V editor.
EFX MK-V Editor
EFX MK-V EDITOR V1.40 (for Windows, 06-23-2019)
EFX MK-V EDITOR V1.40 (for MacOS, 10-18-2019)
Make sure to update the latest firmware(V2.00 or higher) for your
MK-V before attempting to use the Editor software.
|
|
4 mono loops and 2 stereo loops, plus 1 volume loop
Changeable loop order per each preset
2 Buffers, Input and Movable buffers
2 internal unity mixers (Mixer or Spill Over)
361 preset memory locations
72 banks of 5 presets, plus a Global Preset
2 function control switches (Latched / Momentary)
Mute and Click-Less functions
Song and Set mode
Create up to 99 songs
Organized the 99 songs in to 40 sets of 40 songs
8 MIDI Program and 8 MIDI Control Change messages
Each MIDI message can be stored in each preset
18 MIDI Control Change messages by assigned IA switches
MIDI Time Clock or Analog Tempo out for TAP-TEMPO
One expression pedal port (global / per preset)
2 lines x 16 characters LCD display with blue backlight
Easily copy presets, banks, songs and sets
Easily name presets and songs
Heavy-duty footswitches and gold-plated relays
Powered by 12VDC(center negative) 250mA
Dimensions : 320(W) x 96(D) x 68(H) mm
12.6(W) x 3.8(D) x 2.7(H) inches
Weight : 1,130 g / 2.5 lbs
|
Hi-Res Pictures
Picture1 Picture2 Picture3 Picture4 Picture5
Manual
EFX-LE Manual (English, version 1.4x)
Latest Firmware
EFX-LE Firmware Version 1.42 (10-17-2019)
You can update new firmware using the EFX-LE editor.
EFX-LE Editor
EFX-LE EDITOR V1.41 (for Windows, 06-23-2019)
EFX-LE EDITOR V1.40 (for MacOS, 10-18-2019)
Make sure to update the latest firmware(V1.40 or higher) for your
EFX-LE before attempting to use the Editor software.
|
|
|
|
|
|
15 banks of 4 presets(60 memory locations) plus 1 global preset
which is common to all banks
6 true bypass effect loops(4 series + 2 separate)
2 separate loops(loop 5 and 6) will act as footswitches like those amp
channel switching
Utilizes a low-niose and high quality buffer to prevent to the loss
guitar signal
Mute function and Popping noise reduction control
Tuner out(tune at any time while playing)
MIDI IN and OUT
Trasmits 2 MIDI Program Changes on 2 MIDI channels, 8 MIDI Control
Changes on appointed MIDI channels
1 MIDI Control Change for Tap-Tempo
Editor software for PC
|
Heavy-duty footswitches and gold-plated relays
Powered by 12VDC(center negative) 150mA
Dimensions : 300(W) x 82(D) x 55(H) mm
11.8(W) x 3.2(D) x 2.2(H) inches
Weight : 750g / 1.65lb
Manual
EFX LITE 6M Manual (English, version 1.0)
EFX LITE 6M Manual (Korean, version 1.0)
Download
Editor for PC (version 1.0) How
to transfer data
|
|
15 banks of 4 presets(60 memory locations) plus 1 global preset
which is common to all banks
8 true bypass effect loops(6 series + 2 separate)
2 separate loops(loop 7 and 8) will act as footswitches like those amp
channel switching
Utilizes a low-niose and high quality buffer to prevent to the loss
guitar signal
Mute function and Popping noise reduction control
Tuner out(tune at any time while playing)
Heavy-duty footswitches and gold-plated relays
Powered by 12VDC(center negative) 180mA
Dimensions : 300(W) x 82(D) x 55(H) mm
11.8(W) x 3.2(D) x 2.2(H) inches
Weight : 770g / 1.7lb
|
Manual
EFX LITE 8L Manual (English, version 1.0)
EFX LITE 8L Manual (Korean, version 1.0)
|
|
6 true bypass effect loops(4 series + 2 separate)
2 separate loops(loop 5 and 6) will act as footswitches like those amp
channel switching
2 function control switches(F7 and F8)
Utilizes a low-niose and high quality buffer to prevent to the loss
guitar signal
Mute and Click-Less function
Tuner out(tune at any time while playing)
249 preset memory locations
62 banks of 4 presets, plus a Global Preset
4 presets per bank/song
Song and Set mode
Create up to 99 songs
Organized the 99 songs in to 9 sets of 32 songs
Trasmits 6 MIDI Program Change messagess on 6 MIDI channels,
16 MIDI Control Change messages on appointed MIDI channels
XPDL jack for expression pedal input (global / per preset)
BANK jack for external BANK UP/DOWN footswitches
2 line x 16 character LCD display with blue backlight
Easily copy presets, banks, songs and sets
Easily name presets and songs
Heavy-duty footswitches and gold-plated relays
Powered by 12VDC(center negative) 180mA
Dimensions : 310(W) x 82(D) x 52(H) mm
12.2(W) x 3.2(D) x 2.1(H) inches
Weight : 880 g / 2.0 lbs
|
Images

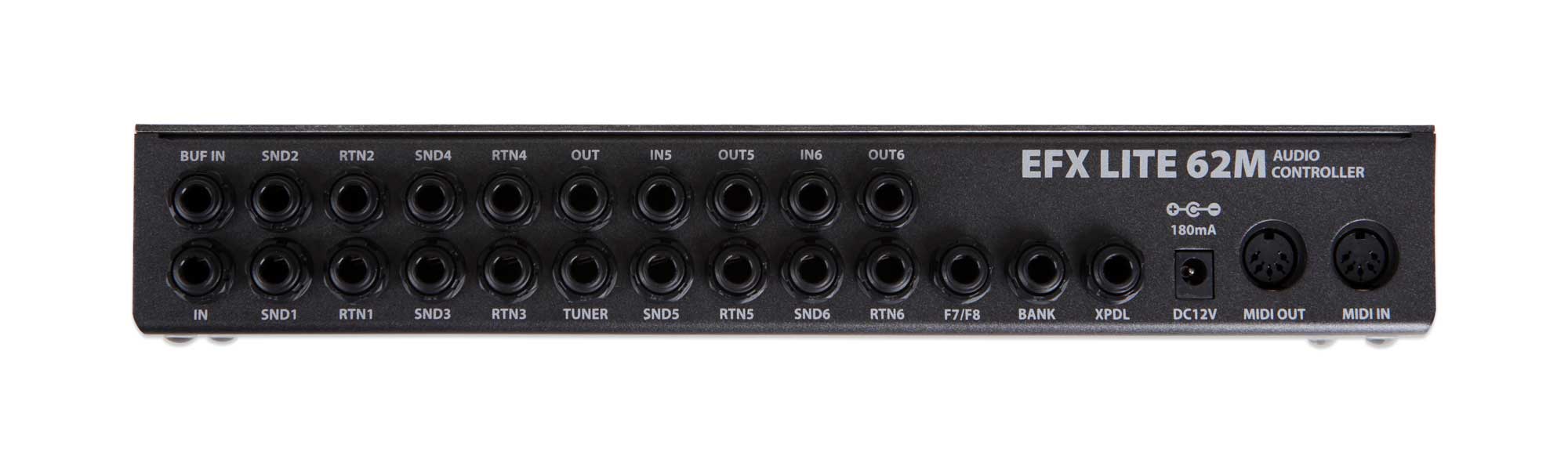

Top Panel , Rear
panel
Manual
EFX LITE 62 Manual (English, version 1.10)
EFX LITE 62 Manual (Korean, version 1.10)
Latest Firmware
Read this document thoroughly before updating to the firmware
EFX LITE 62M Firmware version 1.10
EFX LITE62M PC Editor (for Windows)
Download (2016. V2.0.05)
How to Use PC EDITOR on a MAC
|
|
Power Station NANO is the best power supply system supporting
effect pedals with the finest DC power. Also It is a multi-function
power supply offering 6 normal 9V outputs, one 9V/12V changeable
output, and one 9V/-9V changeable output in a compact size.
-9V is for the effect pedals which use center positive. For example,
Fuzz(with Germanium transistor) and Octavia. And factory setting
is normal polariry(center negative).
Each green LED turns on when output is selected 12V or -9V.
|
Input : 15V, 1,000mA (center positive)
Output : 6 x 9V each max. 300mA
1 x 9V/12V max. 300mA
1 x 9V/-9V max. 300mA/20mA
Total Output Current : max. 1,000mA from 8 CHs
Dimensions : 93(W) x 38(D) x 31(H) mm
Weight : 120g
Manual

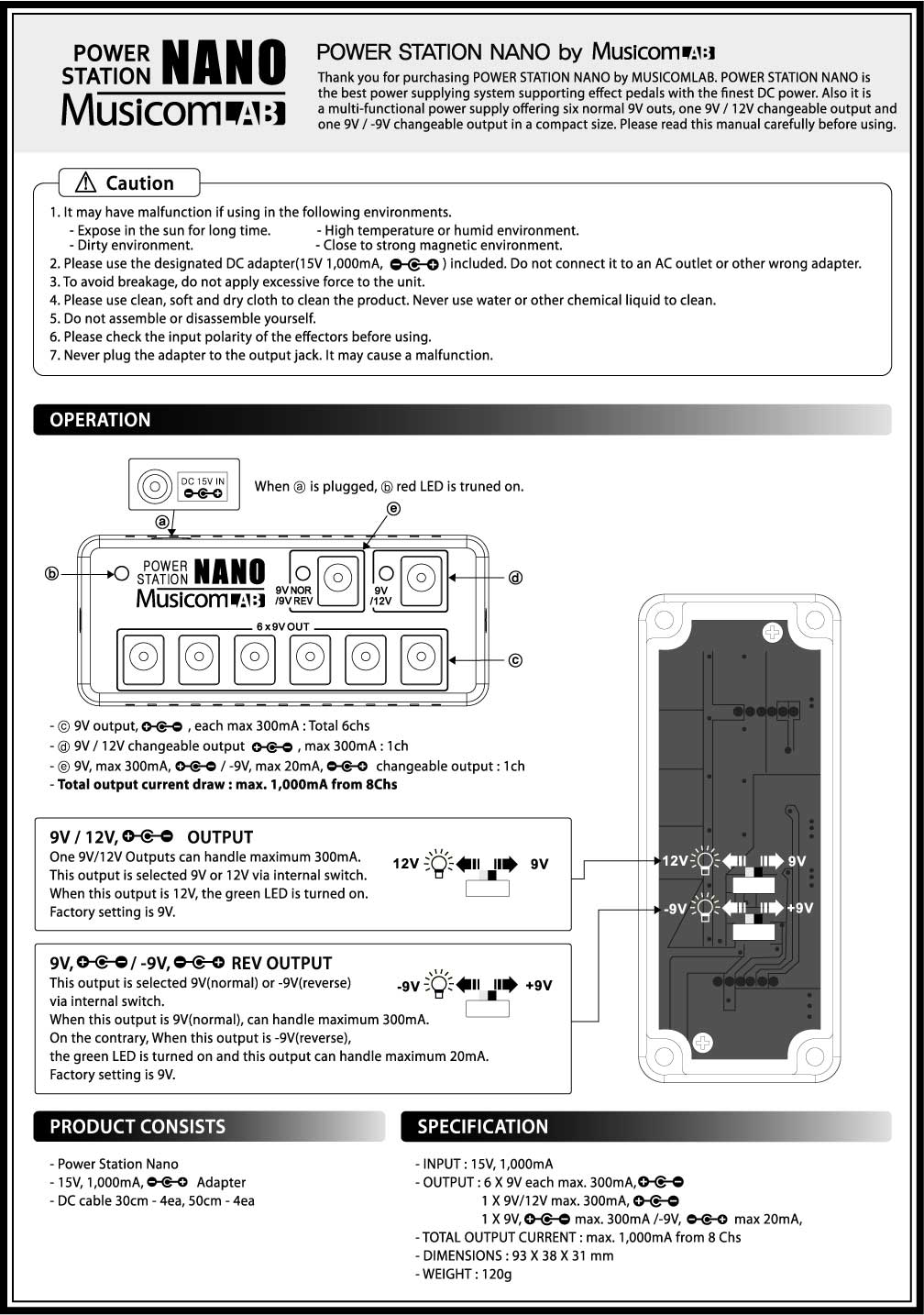

POWER STATION NANO Manual (English)

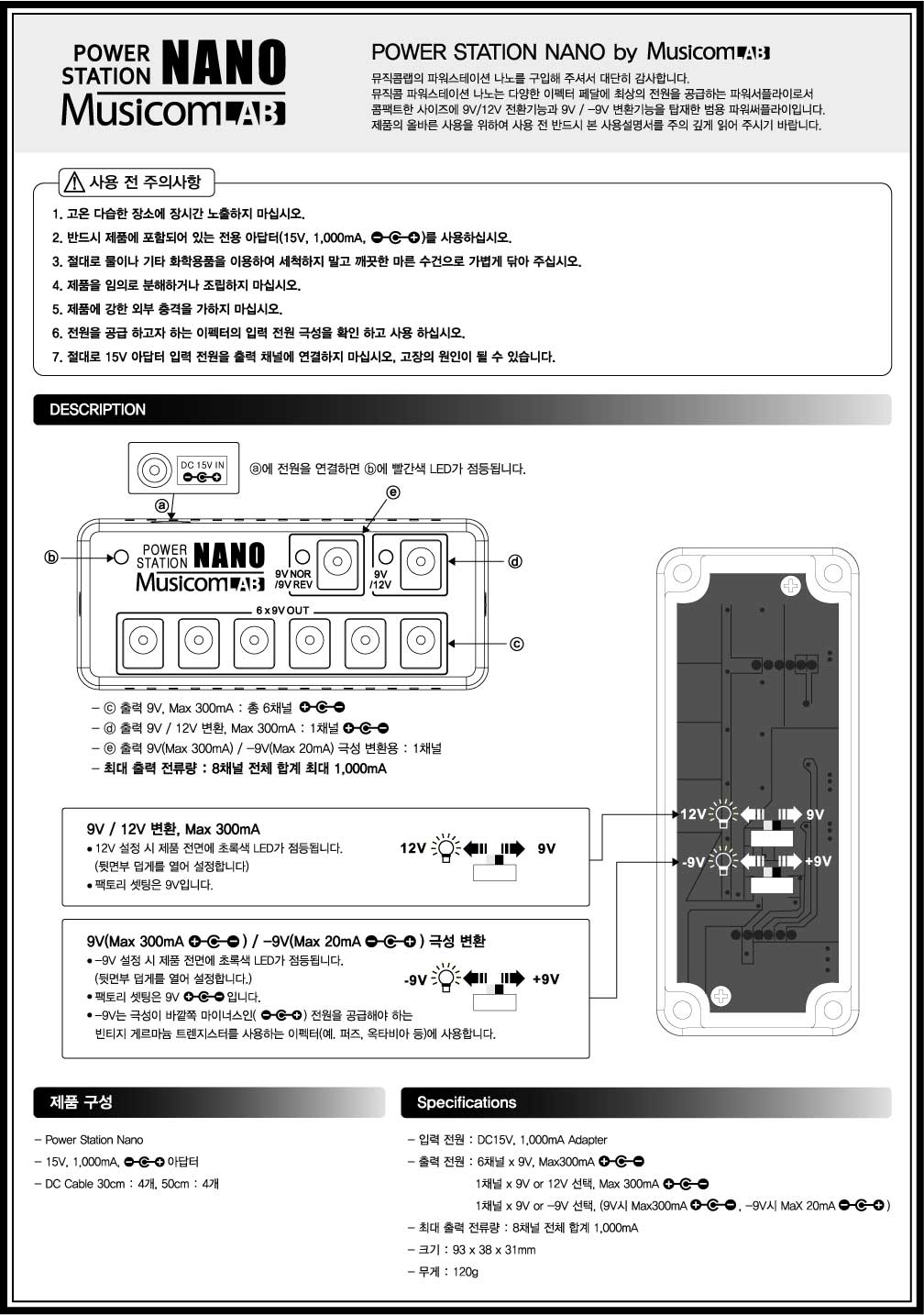

POWER STATION NANO Manual (Korean)
|
|
Power Station MINI is under international patent pending power
supply system with an advanced LCD display for current and voltage.
And It is a multi-function power supply offering 5 normal 9V outputs,
two 6V~12V adjustable outputa, and one 9V/-9V changeable output
in a compact size.
-9V is for the effect pedals which use center positive. For example,
Fuzz(with Germanium transistor) and Octavia. And factory setting
is normal polariry(center negative).
The CH8 output is selected 9V(normal) or -9V(reverse) via internal
switch.
|
Input : 15V, 1,000mA (center positive)
Output : 5 x 9V each max. 480mA, total max. 800mA
2 x 9V~12V each max. 300mA
1 x 9V/-9V max. 480mA/20mA
Total Output Current : max. 1,000mA from 8 CHs
Voltage Display Precision : 0.1V
Current Display Precision : ±3%
Dimensions : 61(W) x 112(D) x 31(H) mm
Weight : 235g

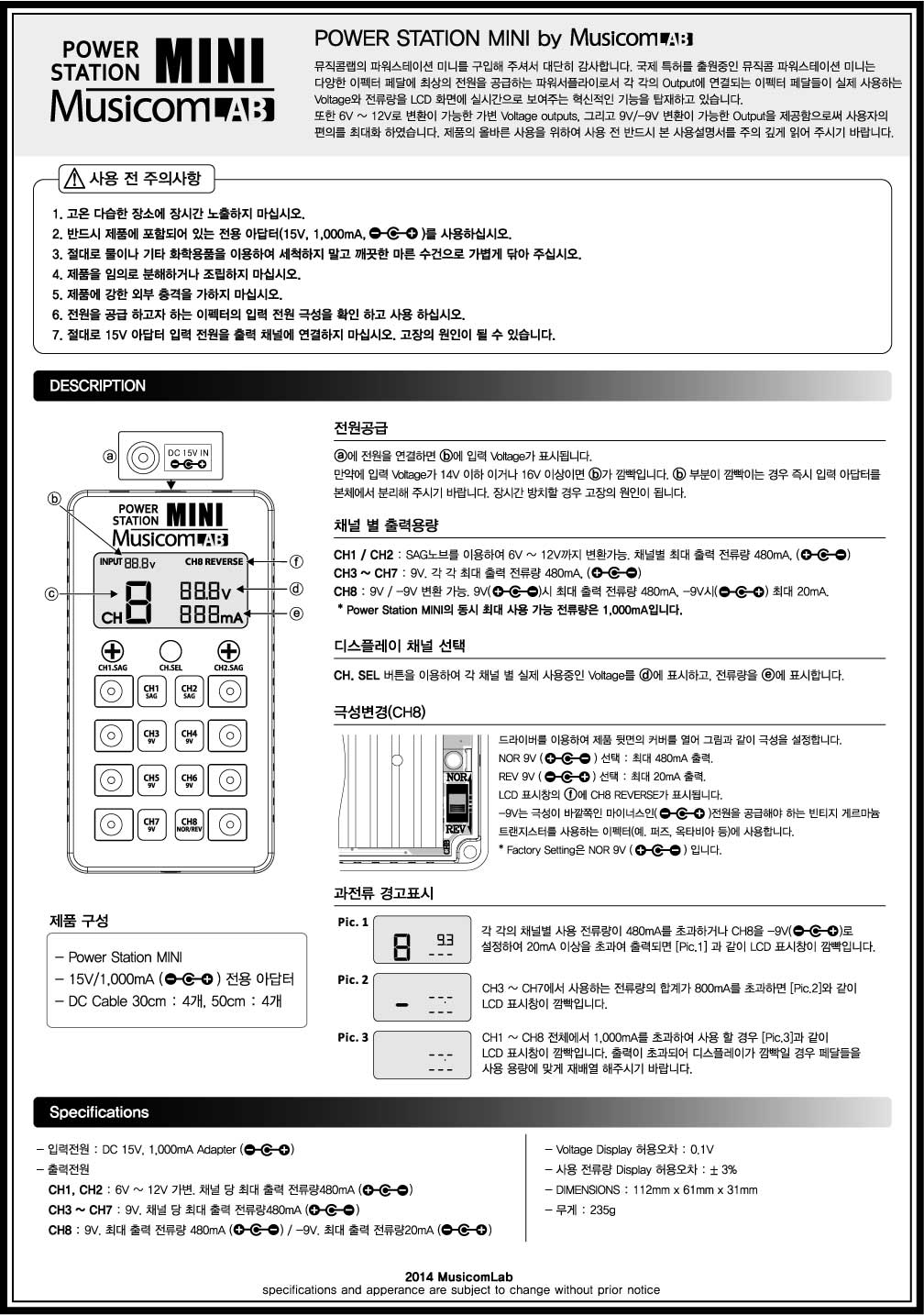

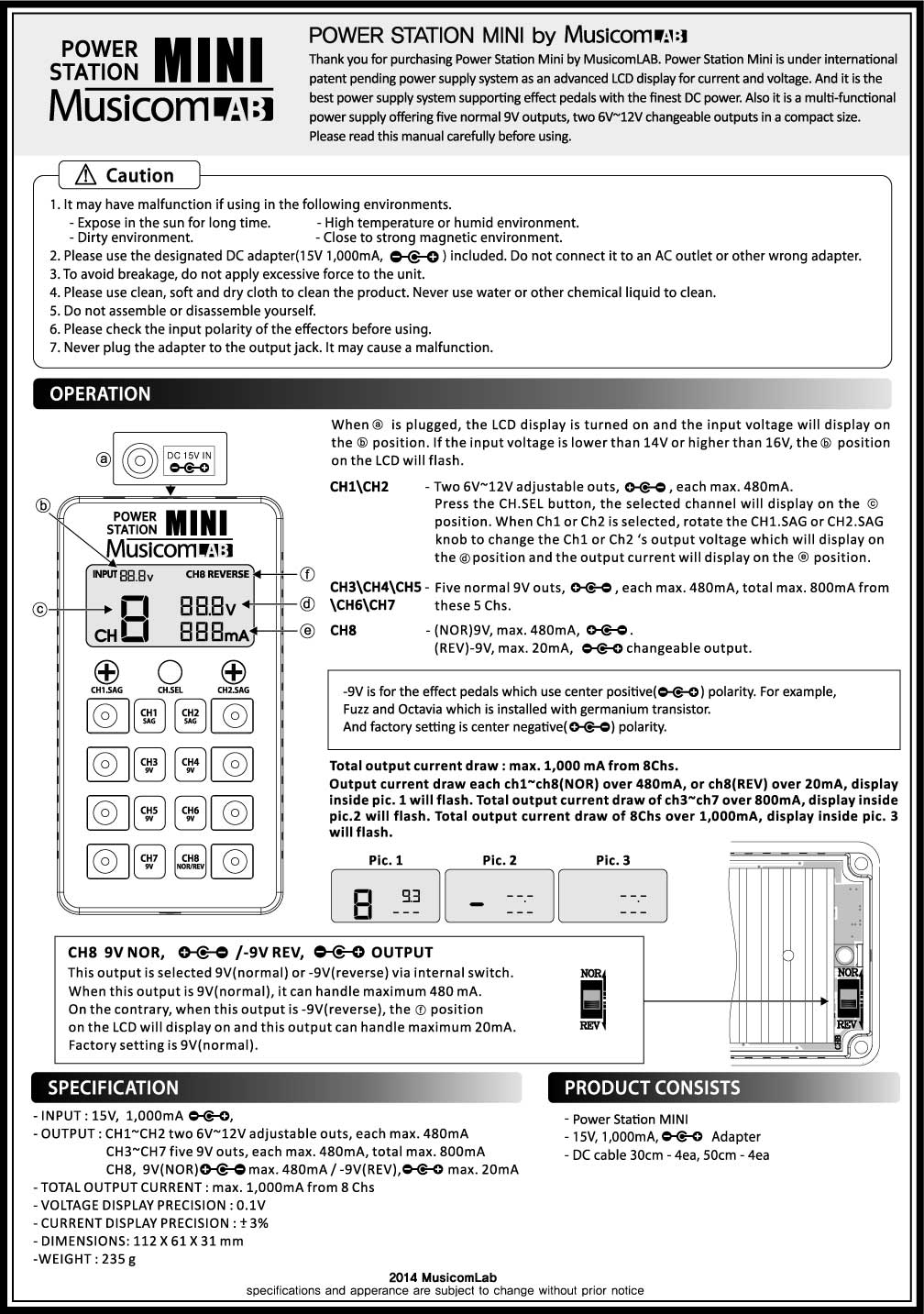

Manual
POWER STATION NANO Manual (English)
POWER STATION NANO Manual (Korean)
|
|
|
|
|
